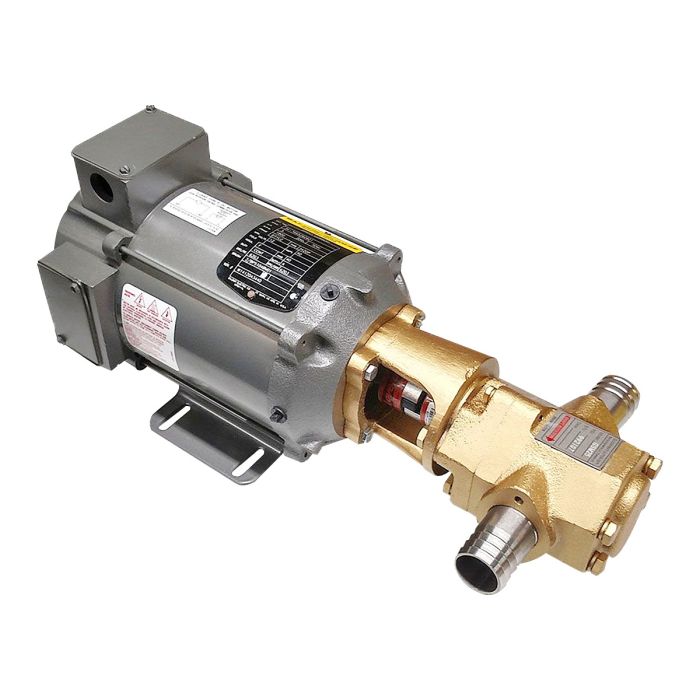

Portable Oil Transfer Gear Pump 12gpm 12VDC

The Raw Power® Monster Gear Pump is a self-priming portable close-coupled rotary gear pump designed to transfer Heavy Oils Fast!

In stock

Ultimate 12VDC Gear Pump

Tired of whimpy oil pumps?

We've gone through 4 years of development on these pumps.  Upgrades have included a custom US Made Baldor motor, viton seals to the pumpheads, scrapping troublesome pressure regulators.   We have had numberous requests for a 12VDC version of out popular Porable Monster Gear Pumps so here it is.   Baldor custom made us a robust 1800RPM motor for moving all types of oils:  diesel, hydralic oil,  motor oil, heavy gear oil etc.   This eliminates having to run your 120V pump through an expensive inverter.

Big Strong Motor + Gear Pump = The Pump for WMO

Heavy Duty 12VDC Electric Motor

*Reliable - Made in the USA, thermal overload switch, 20yr Lifespan
*Continous duty 1/2HP, 40A, 12VDC

Rock Solid Pumphead

*Strong - Close-coupled Rotary Gears
*Fast - 12 GPM@1800rpm
*Beefy - 20lbs Cast Iron

*These pumps fly off the shelf and while we work hard to keep them in stock, we do run out from time to time.  Buy now to ensure you have the best pump ready when you need it.

30 Day Money Back Guarantee.  Feel safe when you purchase.


Additional Specs:

*Dimensions:  17" long x 11" wide x 7" tall (43 cm x 28 cm x 18 cm)
*Weight:  45lbs
*Self Priming
*Suction Height: 15ft
*Push Lift Height: 90ft
*Reversible - Rewire or add a switch to allow dual directional flow!
*Viton Seals
*B100 compatible
*Temperature Rating of 400*F
*Duty Cycle: Continuous
*Priming: Self priming
*12gpm(45 liters/min): 1" NPT threaded ports, 1.25" hose barbs
*Pump needs oil to lubricate the gears. Will not work with water.

Motor Specs

*Thermal Overload Protection
*Output: 1/2HP
*Speed: 1800 RPM
*Volts: 12VDC
*Amps: 40A
*Shaft Size: 14 mm
*Shaft Woodruff Key: 5 mm width x 5 mm deep x 16 mm length
*Motor Base Mount: 4.5" Long x 6.56" Wide
 Pumphead Specs

*Bolt Pattern: 7 mm holes on a 85 mm circle
*Shaft Size: 14 mm keyed shaft
*Shaft Woodruff Key: 5 mm width x 5 mm deep x 12 mm length
*Viton Seals
*Self Priming
*Cast Iron
*1" NPT Ports
*Stainless Steel 1.25" Hose Barbs Included (fits 1.25" hose kit)
*No Pressure Regulator

Coupling Specs

*Pump Coupling: 14 mm
*Motor Coupling: 14 mm
*Size: C
*Overall Length: 1 63/64"
*Hub Diameter: 1 23/64"
*Bore Depth: 1 3/4"
*Screw Size: 1/4"-20
*Spider Element: Buna-N 27/64"

You don't need to waste money on inferior pumps any more.    Buy the Portable Goldstream Oil Pump and you'll get instant speed and reliability!

More Information
Model GSM12
Brand Goldstream Pumps
Voltage 12V
Pressure Unregulated
