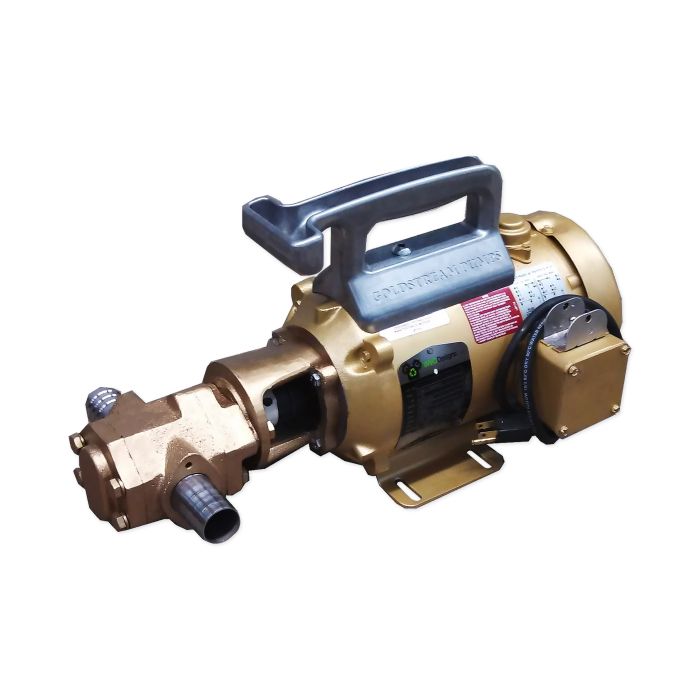

Move Motor Oil With Confidence
Tired of whimpy oil pumps?
We've gone through 4 years of development on these pumps. Upgrades have included a custom US Made Baldor motor, viton seals to the pumpheads, scrapping troublesome pressure regulators. Additionally, our vegetable oil pumps were not reliable for pumping cold motor oil, so we engineered a new Heavy Duty Oil Pump. Baldor custom made us a robust 1700RPM motor for moving motor oil, gear oil etc. Voila, a portable and fast gear pump for high viscosity fluids.
Big Strong Motor + Gear Pump = The Pump for WMO
Heavy Duty Electric Motor
*Reliable - Made in the USA, thermal overload switch, 20yr Lifespan
*Strong - 3/4HP and 4x the Torque of the 3450RPM model
*Beefy - 25lbs
Rock Solid Pumphead
*Fast - 12 gallons per minute
*Beefy - 20lbs Cast Iron
*These pumps fly off the shelf and while we work hard to keep them in stock, we do run out from time to time. Buy now to ensure you have the best pump ready when you need it.
30 Day Money Back Guarantee. Feel safe when you purchase.
*Dimensions: 17" long x 11" wide x 7" tall (43 cm x 28 cm x 18 cm)
*Suction Height: 15ft
*Push Lift Height: 90ft
*Reversible - Rewire or add a switch to allow dual directional flow!
*Temperature Rating of 400*F
*Duty Cycle: Continuous
*Priming: Self priming
*12gpm(45 liters/min): 1" NPT threaded ports, 1.25" hose barbs
*Pump needs oil to lubricate the gears. Will not work with water.
*Thermal Overload Protection
*Output: 3/4 HP
*Speed: 1725 RPM
*Volts: 120 or 220 (comes prewired for 120)
*Amps: 8.7 @ 120 volts, 4.4 @ 220 volts
*Shaft Size: 14 mm
*Shaft Woodruff Key: 5 mm width x 5 mm deep x 16 mm length
*Motor Base Mount: 4.5" Long x 6.56" Wide
*Bolt Pattern: 7 mm holes on a 85 mm circle
*Shaft Size: 14 mm keyed shaft
*Shaft Woodruff Key: 5 mm width x 5 mm deep x 12 mm length
*1" NPT Ports
*Stainless Steel 1.25" Hose Barbs Included (fits 1.25" hose kit)
*No Pressure Regulator
*Pump Coupling: 14 mm
*Motor Coupling: 14 mm
*Overall Length: 1 63/64"
*Hub Diameter: 1 23/64"
*Bore Depth: 1 3/4"
*Screw Size: 1/4"-20
*Spider Element: Buna-N 27/64"
You don't need to waste money on inferior pumps any more. Buy the Portable Goldstream HD Oil Pump you'll get instant speed and reliability!
- pump has performed well. shipping time worked Review by John S.
- works perfectly Review by Cliff T.
- system works well Review by John G
- Pump is working as advertised Review by Miles H.
- The pump works good and pumps veggie oil very fast, I am happy with the pump Review by David C.
- This thing sucks like a tornado! Review by graydonblair
We emptied a 55 gal drum in under 5 minutes! Talk about one heck of a serious pump! It'll suck so hard that if you're not careful with the dip tube you're using, it'll stick to the bottom of a 55 gal drum.
I am extremely impressed with it! Talk about a monster! I recommend it to everyone. (Posted on 3/24/2015)
- Incredible speeds. Review by Nolan
I have tested many pumps over the years including: trash pumps, homemade gear pumps, diaphragm pumps and many others. The 15 gpm monster pump has the best features of all the pumps I have used. It is lightweight, draws low current and still empties a 55 gallon drum of oil in less than 5 minutes!
I wish I could have started with this pump years ago.
(Posted on 3/24/2015)
- Thank you Leon for producing another fine product. Review by Nolan
www.mortarsprayer.com (Posted on 3/24/2015)
- Un-Beatable quality !!!!!!!!!!! Review by The Green Guru
not to mention the great product service center. (Posted on 3/24/2015)
- Works like a champ Review by Gary
- Great Pump Review by Justin
Justin, AL (Posted on 3/20/2015)
