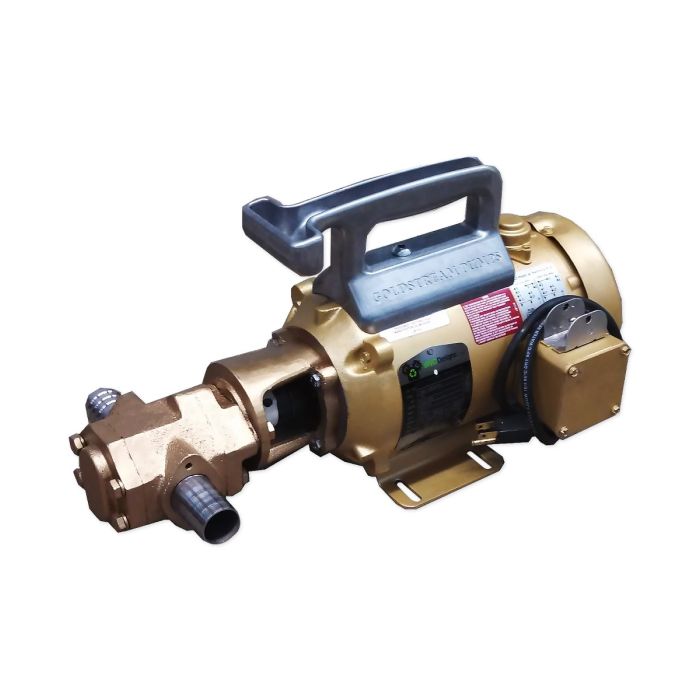

Portable Oil Transfer Gear Pump 20gpm 50hz
220V 50HZ FOR INTERNATIONAL USE
The Raw Power® Monster Gear Pump is a self-priming portable close-coupled rotary gear pump designed to transfer Heavy Oils Fast!
Move Motor Oil With Confidence
Tired of whimpy oil pumps?
We've gone through 4 years of development on these pumps. Upgrades have included a custom US Made Baldor motor, viton seals to the pumpheads, scrapping troublesome pressure regulators. Additionally, our vegetable oil pumps were not reliable for pumping cold motor oil, so we engineered a new Heavy Duty Oil Pump. Baldor custom made us a robust 2850RPM motor for moving motor oil, gear oil etc. Voila, a portable and fast gear pump for high viscosity fluids.
Big Strong Motor + Gear Pump = The Pump for WMO
Heavy Duty Electric Motor
*Reliable - Made in the USA, thermal overload switch, 20yr Lifespan
*Strong - 3/4HP and
*Beefy - 25lbs
Rock Solid Pumphead
*Fast - 20 gallons per minute
*Beefy - 15 lbs Cast Iron
*These pumps fly off the shelf and while we work hard to keep them in stock, we do run out from time to time. Buy now to ensure you have the best pump ready when you need it.
30 Day Money Back Guarantee. Feel safe when you purchase.
*Dimensions: 17" long x 11" wide x 7" tall (43 cm x 28 cm x 18 cm)
*Suction Height: 15ft
*Push Lift Height: 90ft
*Reversible - Rewire or add a switch to allow dual directional flow!
*Temperature Rating of 400*F
*Duty Cycle: Continuous
*Priming: Self priming
*20gpm(75 liters/min): 1" NPT threaded ports, 1.25" hose barbs
*Pump needs oil to lubricate the gears. Will not work with water.
*Thermal Overload Protection
*Output: 3/4 HP
*Speed: 2850 RPM
*Amps: 4.6 @ 220 volts
*Shaft Size: 14 mm
*Shaft Woodruff Key: 5 mm width x 5 mm deep x 16 mm length
*Motor Base Mount: 4.5" Long x 6.56" Wide
*Bolt Pattern: 7 mm holes on a 85 mm circle
*Shaft Size: 14 mm keyed shaft
*Shaft Woodruff Key: 5 mm width x 5 mm deep x 12 mm length
*1" NPT Ports
*Stainless Steel 1.25" Hose Barbs Included (fits 1.25" hose kit)
*No Pressure Regulator
*Pump Coupling: 14 mm
*Motor Coupling: 14 mm
*Overall Length: 1 63/64"
*Hub Diameter: 1 23/64"
*Bore Depth: 1 3/4"
*Screw Size: 1/4"-20
*Spider Element: Buna-N 27/64"
You don't need to waste money on inferior pumps any more. Buy the Portable Goldstream HD Oil Pump you'll get instant speed and reliability!
