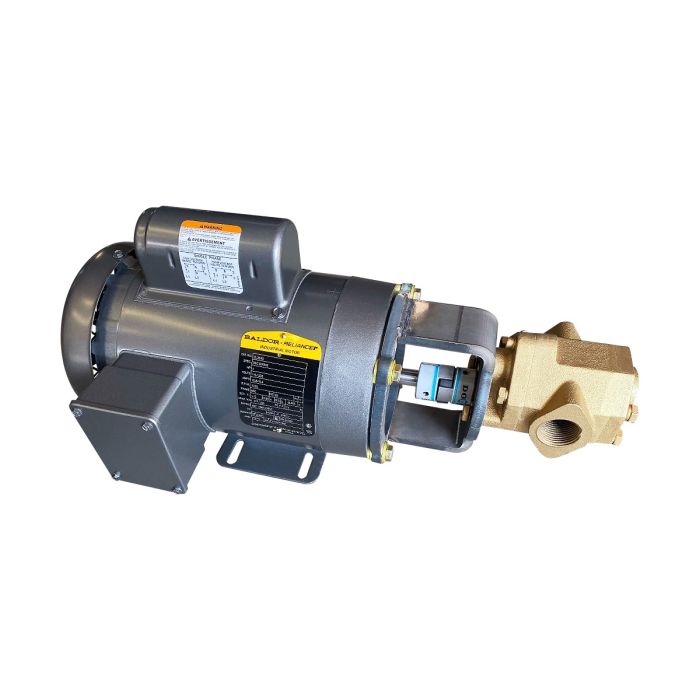

25gpm Oil Transfer Gear Pump 2hp Motor (No Switch or Plug)
DOES NOT HAVE ON/OFF SWITCH OR PLUG!
.
.
Move Motor Oil With Confidence
Tired of whimpy oil pumps?
We've gone through 4 years of development on these pumps. Upgrades have included a custom US Made Baldor motor, viton seals to the pumpheads, scrapping troublesome pressure regulators. Additionally, our vegetable oil pumps were not reliable for pumping cold motor oil, so we engineered a new Heavy Duty Oil Pump. Uses a robust Baldor 2hp 3450RPM motor for moving motor oil, gear oil etc. Voila, a portable and fast gear pump for high viscosity fluids.
Big Strong Motor + Gear Pump = The Pump for WMO
Heavy Duty Electric Motor
*Reliable - Made in the USA, 20yr Lifespan
*Strong - 2HP 3450RPM model
*Beefy - 43lbs
Rock Solid Pumphead
*Fast - 25 gallons per minute
*Beefy - 20lbs Cast Iron
*These pumps fly off the shelf and while we work hard to keep them in stock, we do run out from time to time. Buy now to ensure you have the best pump ready when you need it.
30 Day Money Back Guarantee. Feel safe when you purchase.
Additional Specs:
*Dimensions: 17" long x 11" wide x 7" tall (43 cm x 28 cm x 18 cm)
*Weight: 68lbs
*Self Priming
*Suction Height: 15ft
*Push Lift Height: 90ft
*Reversible - Rewire or add a switch to allow dual directional flow!
*Viton Seals
*B100 compatible
*Temperature Rating of 210*F
*Duty Cycle: Continuous
*Priming: Self priming
*25gpm(45 liters/min): 1" NPT threaded ports, 1.25" hose barbs
*Pump needs oil to lubricate the gears. Will not work with water.
Motor Specs
*Output: 2 HP
*Speed: 3450 RPM
*Volts: 120 or 220 (comes prewired for 120)
*Amps: 12.8 @ 120 volts, 6.4 @ 220 volts
*Hertz: 60
*Shaft Size: 5/8"
*Shaft Woodruff Key: 5 mm width x 5 mm deep x 16 mm length
*Motor Base Mount: 4.5" Long x 6.56" Wide
*Bolt Pattern: 7 mm holes on a 85 mm circle
*Shaft Size: 14 mm keyed shaft
*Shaft Woodruff Key: 5 mm width x 5 mm deep x 12 mm length
*Viton Seals
*Self Priming
*Cast Iron
*1" NPT Ports
*Stainless Steel 1.25" Hose Barbs Included (fits 1.25" hose kit)
*No Pressure Regulator
Coupling Specs
*Pump Coupling: 5/8"
*Motor Coupling: 14 mm
*Size: C
*Overall Length: 1 63/64"
*Hub Diameter: 1 23/64"
*Bore Depth: 1 3/4"
*Screw Size: 1/4"-20
*Spider Element: Buna-N 27/64"
You don't need to waste money on inferior pumps any more. Buy the Portable Goldstream HD Oil Pump you'll get instant speed and reliability!
